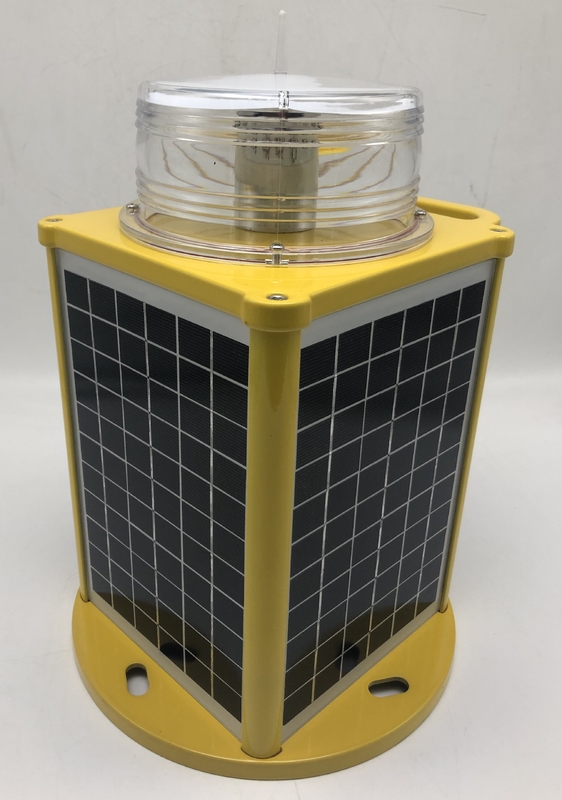

LED Solar Marine Signal Lights 24W Ship Navigation Lights IP68
Product Details:
| Place of Origin: | China |
| Brand Name: | JV |
| Certification: | CE,RoHs |
| Model Number: | JVL-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Standard export package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs/Month |
|
Detail Information |
|||
| LED Color: | Red, Green, Blue, Yellow, White | Product Name: | Marine Navigation Lantern |
|---|---|---|---|
| Visibility: | 4~7NM(TC=0.74) | Led Service Life: | > 100,000hours |
| Working Temperture: | -40℃~+85℃ | Protection Class: | IP68 |
| Output(watts): | 24W (6Wx4) | Weight: | 9kg |
| High Light: | LED Solar Marine Signal Lights,24W Ship Navigation Lights,Ship Navigation Lights IP68 |
||
Product Description
LED Solar Marine Lantern Ship Navigation Lights Marine Signal Lights
|
SPECIFICATIONS
|
JV-LS/C-6-1 LED Solar Powered Marine Lanterns
|
|
Light Characteristics
|
|
|
Light Source
|
LED
|
|
Available Colors
|
Red, Green, Yellow, White
|
|
Visible Range(NM)
|
Up to 5-7nm (AT@0.74)
|
|
Horizontal Output(degrees)
|
360
|
|
Vertical Divergence(degrees)
|
7
|
|
Flash Characteristics
|
Adjustable 256 IALA light characteristics
|
|
Operation Mode
|
Dusk-to-dawn Automatically (Built-in photocell)
|
|
LED Life Experience(hours)
|
>100,000
|
|
Electrical Characteristics
|
|
|
Operating Voltage
|
12Vdc
|
|
Circuit Protection
|
Integrated
|
|
Solar Characteristics
|
|
|
Solar Module Type
|
Mono crystalline Silicon
|
|
Output(watts)
|
24
|
|
Charging Regulation
|
Microprocessor controlled
|
|
Battery Characteristics
|
|
|
Battery type
|
Valve-Regulated Lead Acid Battery
|
|
Battery Capacity (Ah)
|
Depends on different visible range
|
|
Nominal Voltage (V)
|
12
|
|
Battery Service Life
|
Average of 3 years
|
|
Physical Characteristics
|
|
|
Body Material
|
UV protected Polycarbonate
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
|
Mounting(mm)
|
250×200×Φ12
|
|
Dimension(mm)
|
250×250×480
|
|
Weight(kg)
|
9
|
|
Product Life Expectancy
|
Average of 5 years
|
|
Environmental Factors
|
|
|
Humidity
|
0~100%
|
|
Wind Speed
|
80m/s
|
|
Waterproof
|
IP65
|
|
Compliance
|
|
|
IALA
|
Signal colors compliant to IALA E-200-1
|
|
Options Available
|
|
|
|
GSM Monitoring
|
Installation and use method:
● Lamps must be installed in a place where sunlight can be fully received to ensure that it can work continuously.
● Install the lamp on the horizontal mounting surface, the mounting surface should be flat and have sufficient mechanical strength, fixed with 4 M10 screws.
● Turn on the battery switch at the bottom of the lamp when it is used for the first time and turn it off when it is stored for a long time.
● Set the required working mode, open the lamp shade, according to the instructions to adjust the required lamp quality mode.
● The lamp has light control function, when the ambient illumination is lower than the light control switch value when the lamp starts to work.
● As the lamp with photoelectric switch function, when the ambient illumination is high, the navigation light will not be lit. During the test, the aerial lamp should be placed in a dark environment.
● GPS synchronization function test in an outdoor environment without shelter, synchronization takes about 10 minutes. (Only suitable for sync type with GPS). Matters needing attention
● Internal storage battery, please replace the battery regularly to ensure that the lamp can work normally, it is recommended to replace once a year.
● When stored for more than 6 months, the product should be exposed to sunlight for 3 days to fully charge the battery.
● The top bird tip is sharp, beware of being pricked.
