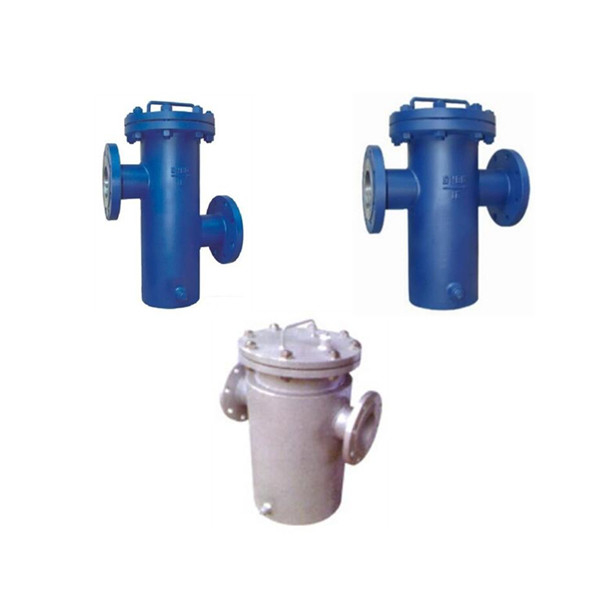

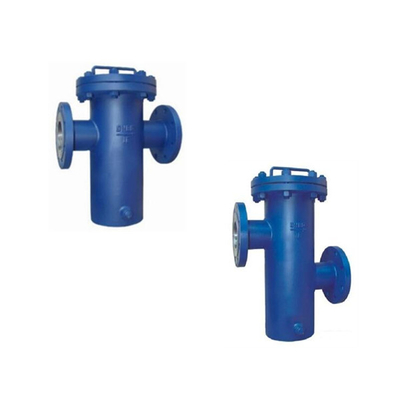

DN25 Basket Strainer Filter
Product Details:
| Place of Origin: | Chongqing of China |
| Brand Name: | JUVI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Delivery Time: | in stock |
| Payment Terms: | Western Union, MoneyGram, D/P, D/A, L/C, T/T |
|
Detail Information |
|||
| Name: | Basket Strainer Filter | MOQ: | 1PC |
|---|---|---|---|
| Packing: | Wooden Package | Applicable Medium: | Oil/ Water |
| Application: | Boat Ship Marine | Material: | Cast Iron/ Cast Steel/ Stainless Steel/ Bronze …… |
| Standard: | ANSI/ JIS …… | DN: | 25-600 |
| Highlight: | DN25 Basket Strainer Filter,DN600 basket strainer filter,DN40 basket strainer filter |
||
Product Description
Marine Ship Boat Flange Basket Strainer Filter JIS ANSI
Main Connection imensions
| SRBA-I Straight through Basket Strainer Filter (PN1.0-2.5) | SRBA-II | |||||||||
| DN | D1 | H | H1 | B | effective filtration area(m) | H | H | H1 | H2 | |
| 25 | 76 | 260 | 160 | 180 | DN15 | 0.00362 | 7 | 260 | 160 | 90 |
| 32 | 76 | 270 | 160 | 200 | 0.00362 | 4.5 | 270 | 160 | 90 | |
| 40 | 108 | 300 | 180 | 260 | 0.00572 | 4.5 | 300 | 180 | 100 | |
| 50 | 108 | 300 | 180 | 260 | 0.00572 | 3 | 300 | 180 | 100 | |
| 65 | 133 | 350 | 220 | 330 | 0.00961 | 3 | 350 | 220 | 120 | |
| 80 | 159 | 400 | 250 | 340 | 0.01539 | 3 | 400 | 250 | 140 | |
| 100 | 219! | 470 | 300 | 400 | DN20 | 0.02464 | 3 | 470 | 300 | 160 |
| 125 | 273 | 550 | 360 | 480 | 0.04866 | 3 | 550 | 360 | 180 | |
| 150 | 273 | 630 | 420 | 500 | 0.04866 | 2.5 | 630 | 420 | 220 | |
| 200 | 325 | 780 | 530 | 560 | 0.07858 | 2.5 | 780 | 530 | 280 | |
| 250 | 426 | 930 | 640 | 660 | 0.12065 | 2.5 | 930 | 640 | 350 | |
| 300! | 478 | 1050 | 700 | 750 | DN20 | 0.16573 | 2.5 | 1200 | 840 | 410 |
| 350 | 530 | 1100 | 730 | 800 | 0.24677 | 2.4 | 1200 | 840 | 420 | |
| 400 | 580 | 1200 | 780 | 850 | 0.314 | 2.3 | 1400 | 920 | 430 | |
| 450 | 630 | 1250 | 800 | 920 | 0.55636 | 2.3 | 1450 | 980 | 450 | |
| 500 | 700 | 1400 | 890 | 1100 | 0.785 | 2.6 | 1500 | 1050 | 480 | |
| 600 | 800 | 1600 | 1050 | 1250 | 1.41321 | 2.2 | 1800 | 1280 | 580 | |
Basket type filter
Basket type filter, is mainly composed of takeover, main pipe, filter basket, flange, flange cover and fasteners. When the liquid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter basket, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is needed, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reinstall it after cleaning. Therefore, it is extremely convenient to use and maintain.
The basket filter is a small equipment that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter. Discharge, when cleaning is needed, just take out the detachable filter cartridge and reinstall it after treatment. Therefore, it is extremely convenient to use and maintain.
Company
Our products have sold to regions as far away as Europe, North America and Asia, among others. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.
Main Products
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight/ Spot Light/ Flood Light, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products:according to customers' request.
